Mid Drive Systems
Product Details

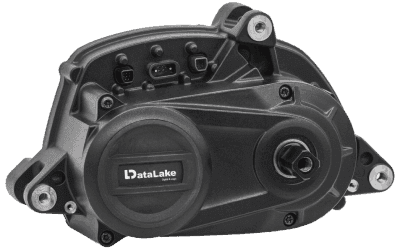

Drive 2
The Drive 2 Mid Drive Motor is cost-effective and offers exceptional performance stability, making it ideal for eCity, eTrekking, and eTrail applications. It operates at 36V with 250W rated power, delivering 80 Nm of torque.
With an IP65 rating and a maximum RPM of 130, it weighs approximately 2.8 kg, ensuring versatility and dependability across various riding conditions.
Core Specifications
250W
Motor Power
80 Nm
Torque
IP65
IP Rating
ca. 2.8 Kg
Weight
Cost-effective Performance Beast
The Drive 2 Mid Drive Motor excels in eCity, eTrekking, and eTrail applications. Its high torque output of 80 Nm makes it perfect for urban commuting, long-distance trekking, and challenging trails. This motor provides high efficiency by leveraging the bike’s gears, ensuring optimal power delivery and smooth acceleration.
Centrally located, it enhances stability and control, providing a balanced ride with a low center of gravity. Additionally, its design maximizes battery life, allowing for longer rides, and offers simplified maintenance with easy wheel removal.

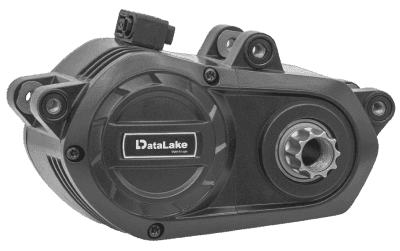

Drive 4
The Drive 4 Mid Drive Motor is compact and lightweight, with reliable output and a hidden design. It’s suitable for eGravel, eRoad, and eCity bikes, operating at 36V with a rated power while delivering 60 Nm of torque.
With an IP65 rating, a maximum RPM of 120, and a weight of around 2.2 kg, it’s perfect for high-end mountain bikes as well as regular commuters.
Core Specifications
250W
Motor Power
60 Nm
Torque
IP65
IP Rating
ca. 2.2 Kg
Weight
Lightweight & Advanced Design
The Drive 4 Mid Drive Motor is ideal for eGravel, eRoad, and eCity bikes. Its compact, lightweight design, combined with a 60 Nm torque output, makes it suitable for both high-end mountain bikes and regular commuters. This motor ensures reliable performance and smooth integration into the bike frame, maintaining a sleek appearance.
It offers consistent power across various conditions, making it versatile for different riding styles. Additionally, its high torque output provides strong, responsive power, enhancing the overall riding experience.
All Mid Drive Motor Comparison
Detailed Motor Comparison for Informed Choices
 |  | |
| Rated Voltage | 36 V | 36 V |
| Rated Power | 250 W | 250 W |
| Max Power | 500 W | 400 W |
| Max Torque | 80 Nm | 60 Nm |
| Overload Capacity | 300W | 350 W |
| IP Rating | IP65 | IP65 |
| Cadence | Max 130 RPM | Max 120 RPM |
| Weight | ca. 2.8 Kg | ca. 2.2 Kg |
